Completed · Handover Ready
Villa 3 · Al Wukair, Qatar

Construction Process

A stage-by-stage look at how ABTC delivered Villa 3 — from site mobilization and bulk excavation through structural works, finishes, and final handover, built to QCS 2024 standards.

View Construction Process Start Your Project
9
Construction Stages
QCS 2024
Standards Compliant
Al Wukair
Qatar

The Construction Process

Every stage of Villa 3 was inspected and signed off before moving to the next — from formation level checks at excavation through to final snag-list inspection at handover.

01
Site Mobilization

Fencing & Site Setup

  • Perimeter hoarding and site fencing erected prior to mobilization for safety and access control.
  • Project signage installed showing site details, consultant, contractor and permit information.
  • Site established and secured ahead of excavation works commencing.

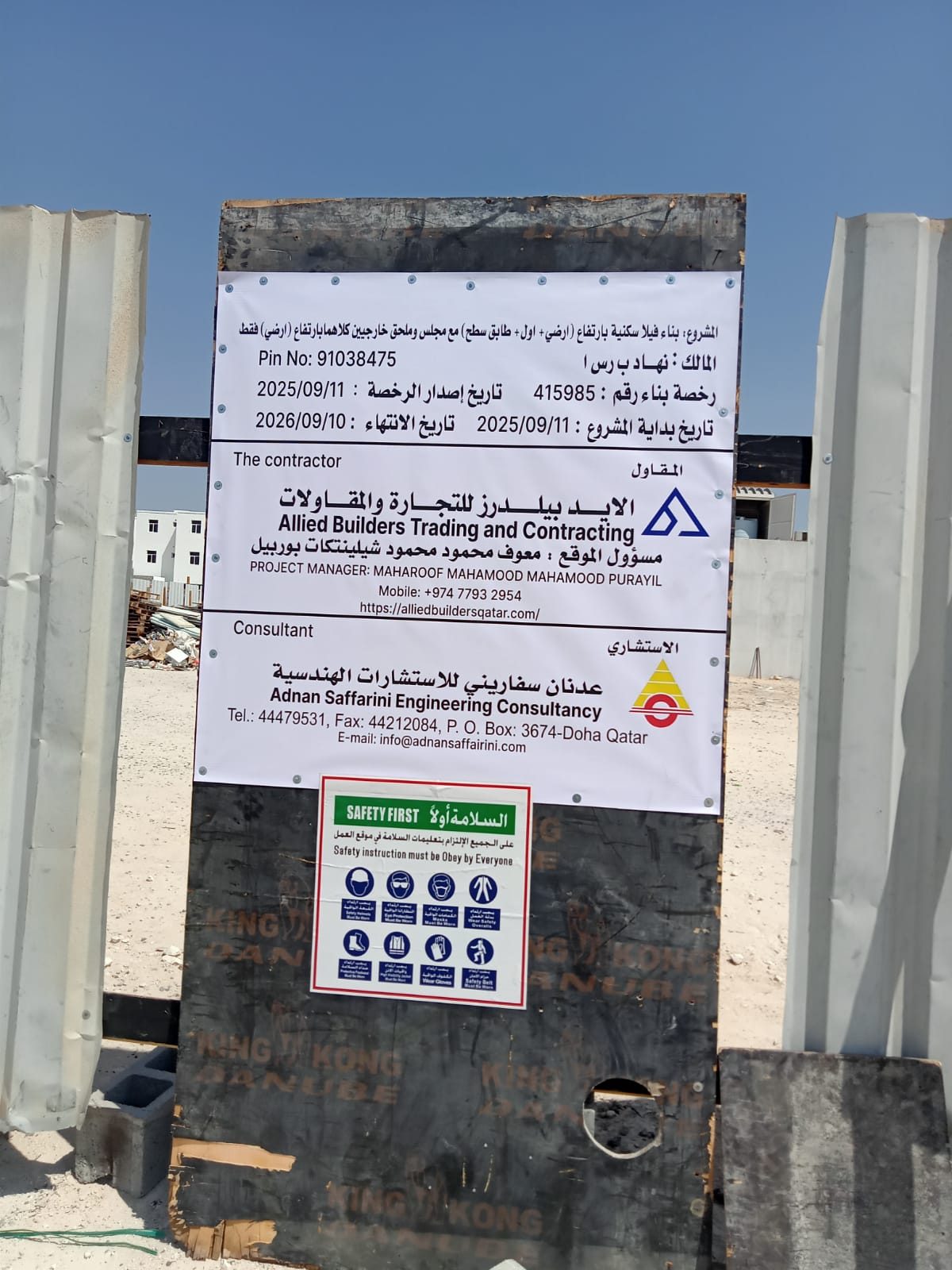

Villa 3 site signage and hoarding
02
Stage 01

Excavation

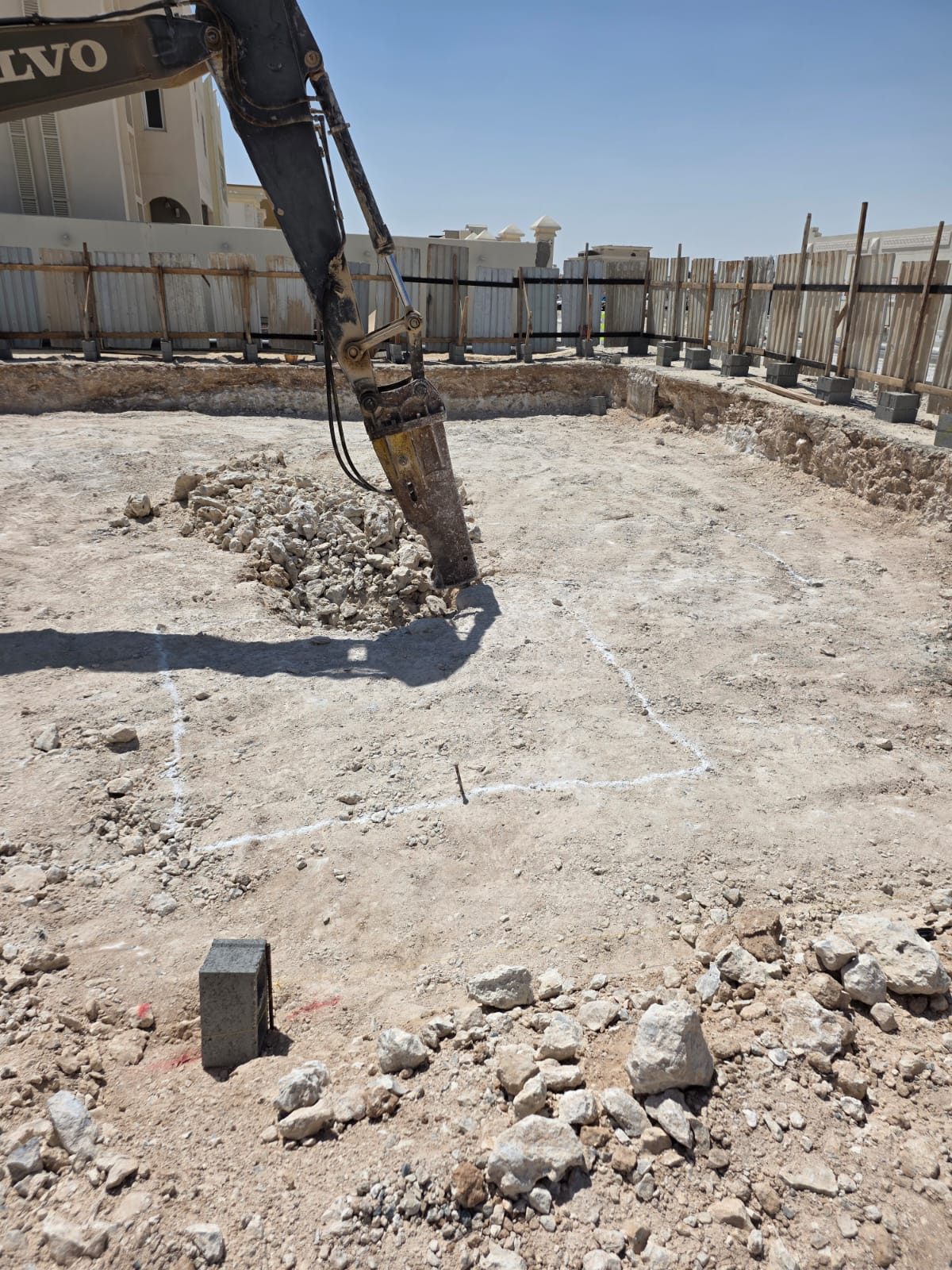

  • Bulk excavation carried out down to bedrock to provide a solid, high-bearing founding level for the strip footings.
  • Bedrock/formation level confirmed against the approved structural GA drawings and geotechnical report before proceeding.
  • QCS 2024 Section 2 (Earthworks) level tolerances verified prior to anti-termite treatment.

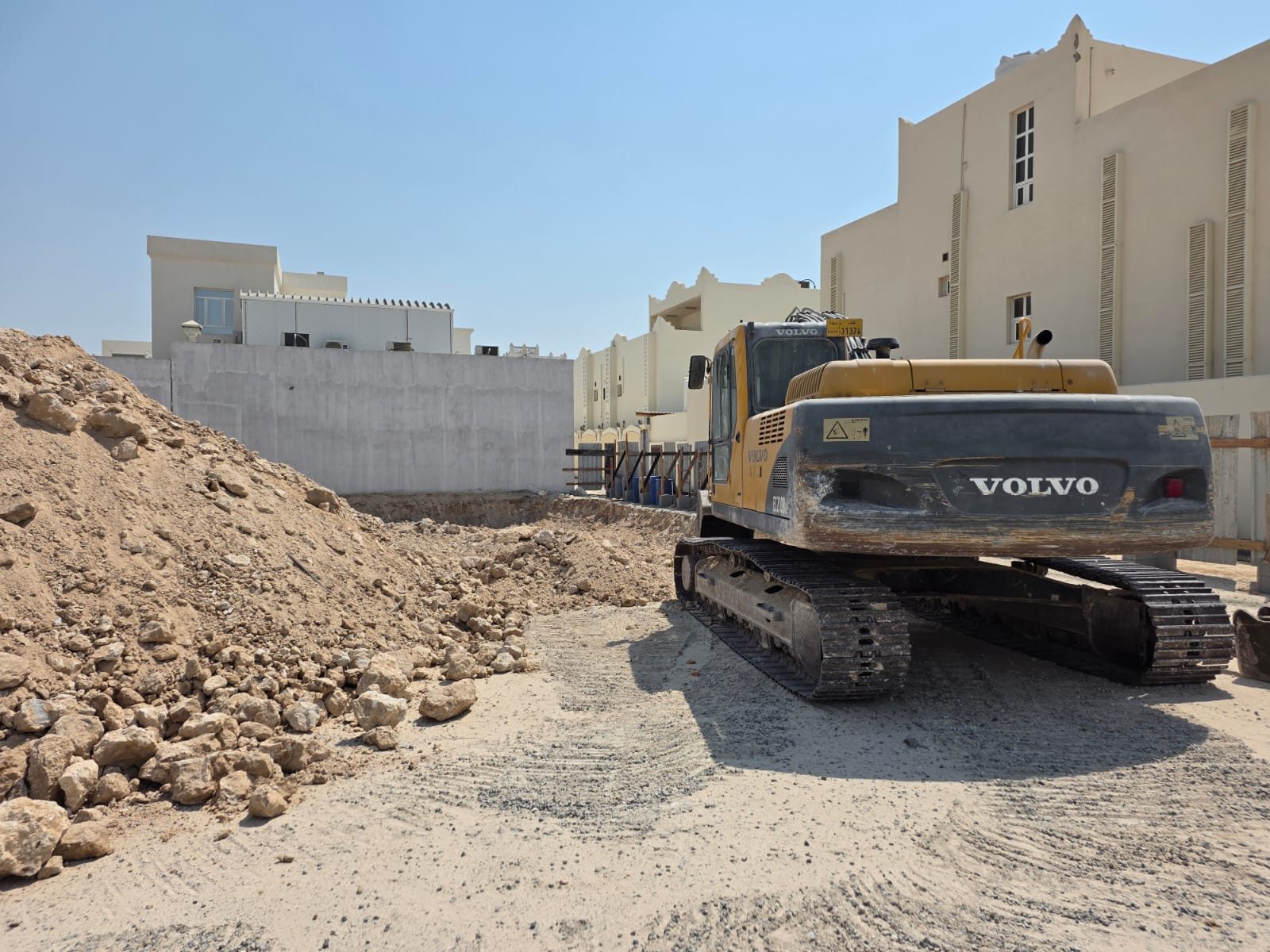

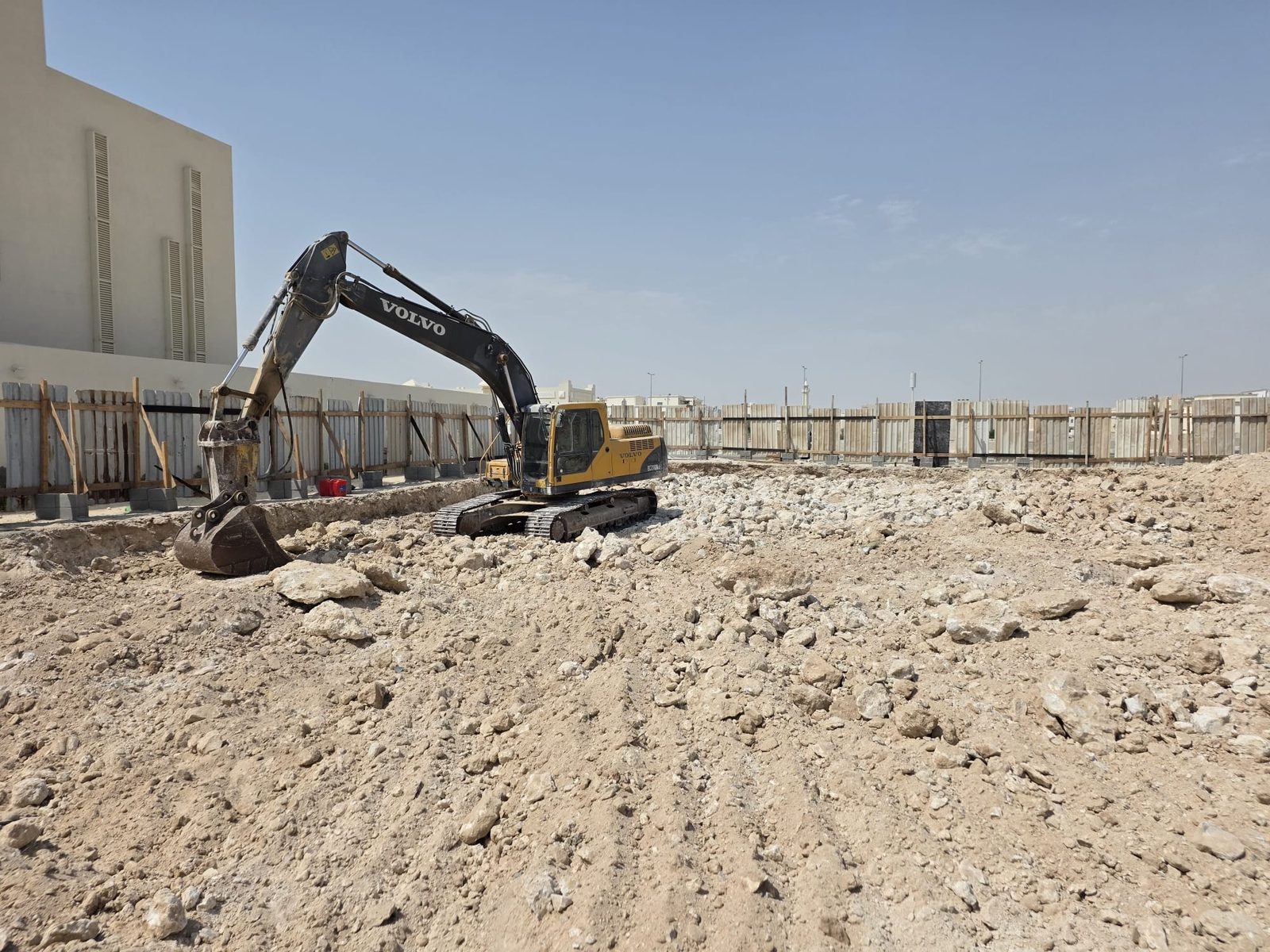

Bulk excavation at Villa 3 Excavator working the foundation trench Excavated formation ready for treatment
03
Stage 02

Anti-Termite Treatment

  • Chemical soil (termiticide) treatment applied to the excavated formation and trench sides prior to blinding.
  • Application carried out with low-pressure spray equipment across the full footprint, including service trenches.
  • Treatment sequenced to allow curing time before blinding concrete is placed, per manufacturer's data sheet.

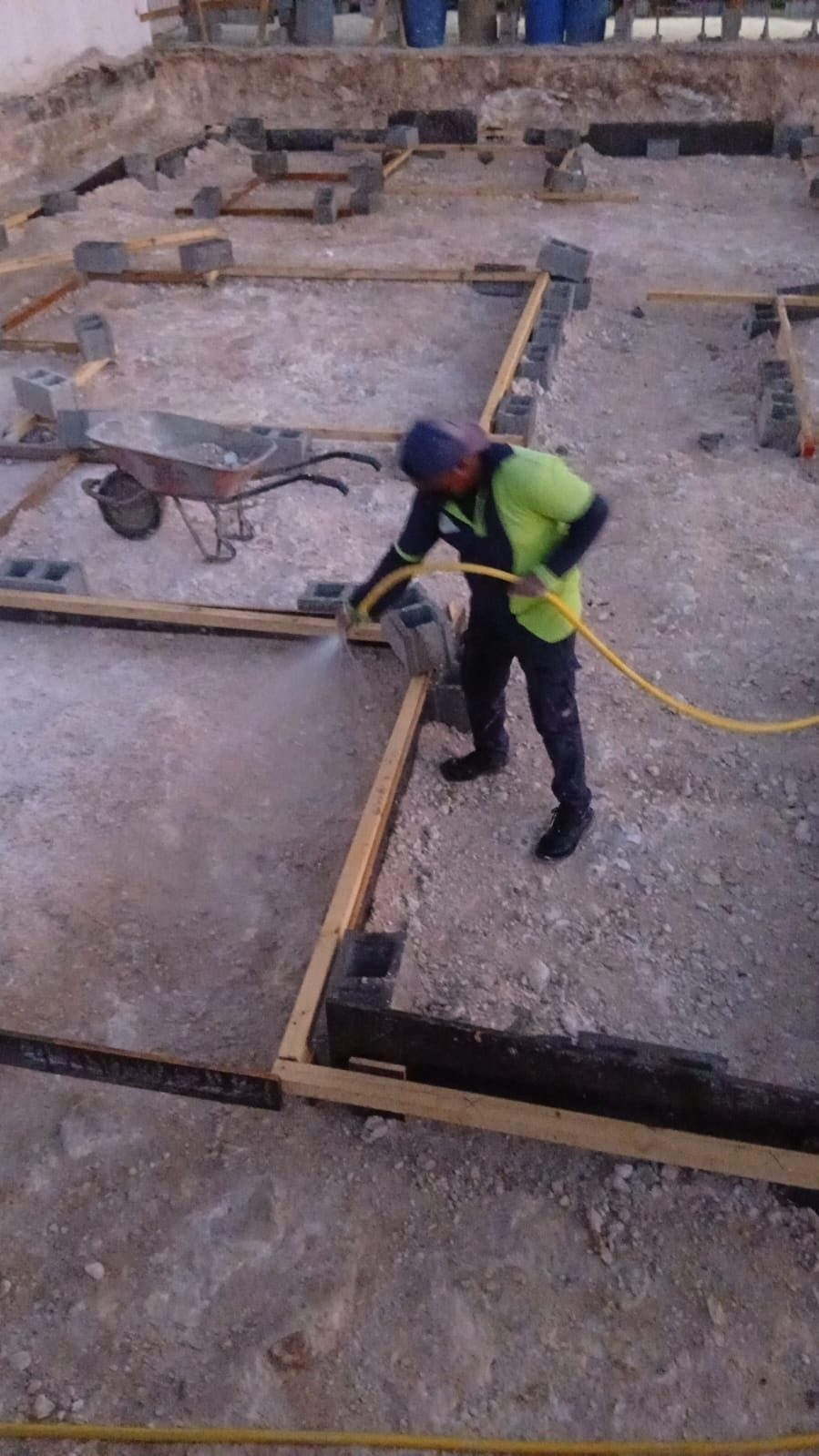

Anti-termite treatment application
04
Stage 03

Blinding

  • Plain concrete blinding placed over the prepared, treated formation to provide a clean working surface.

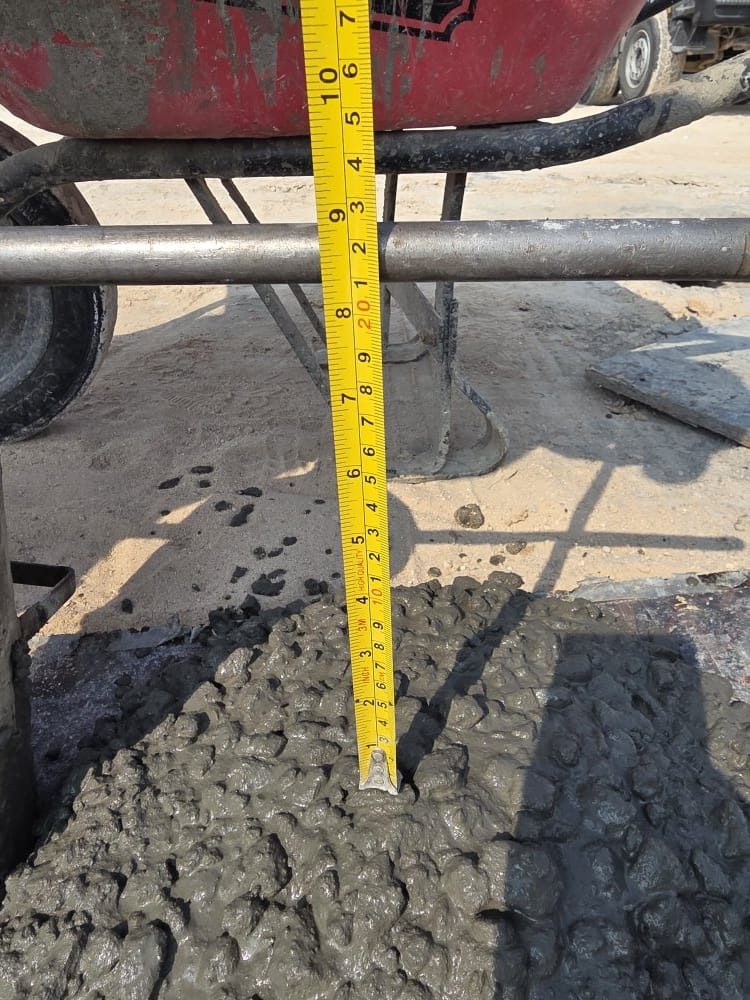

  • Fresh concrete checked on site: slump test and concrete temperature recorded prior to placement.
  • Blinding level and thickness verified before footing reinforcement fixing commenced.

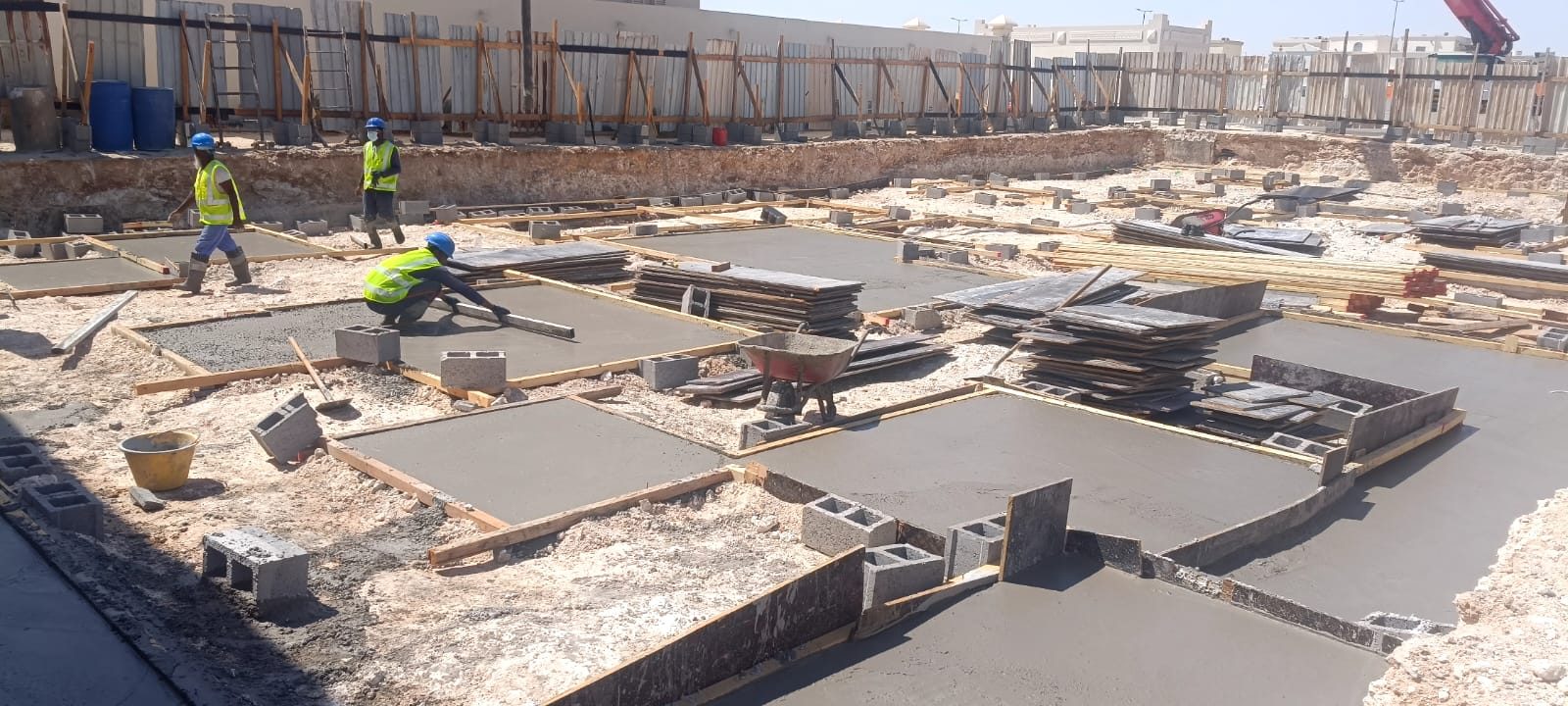

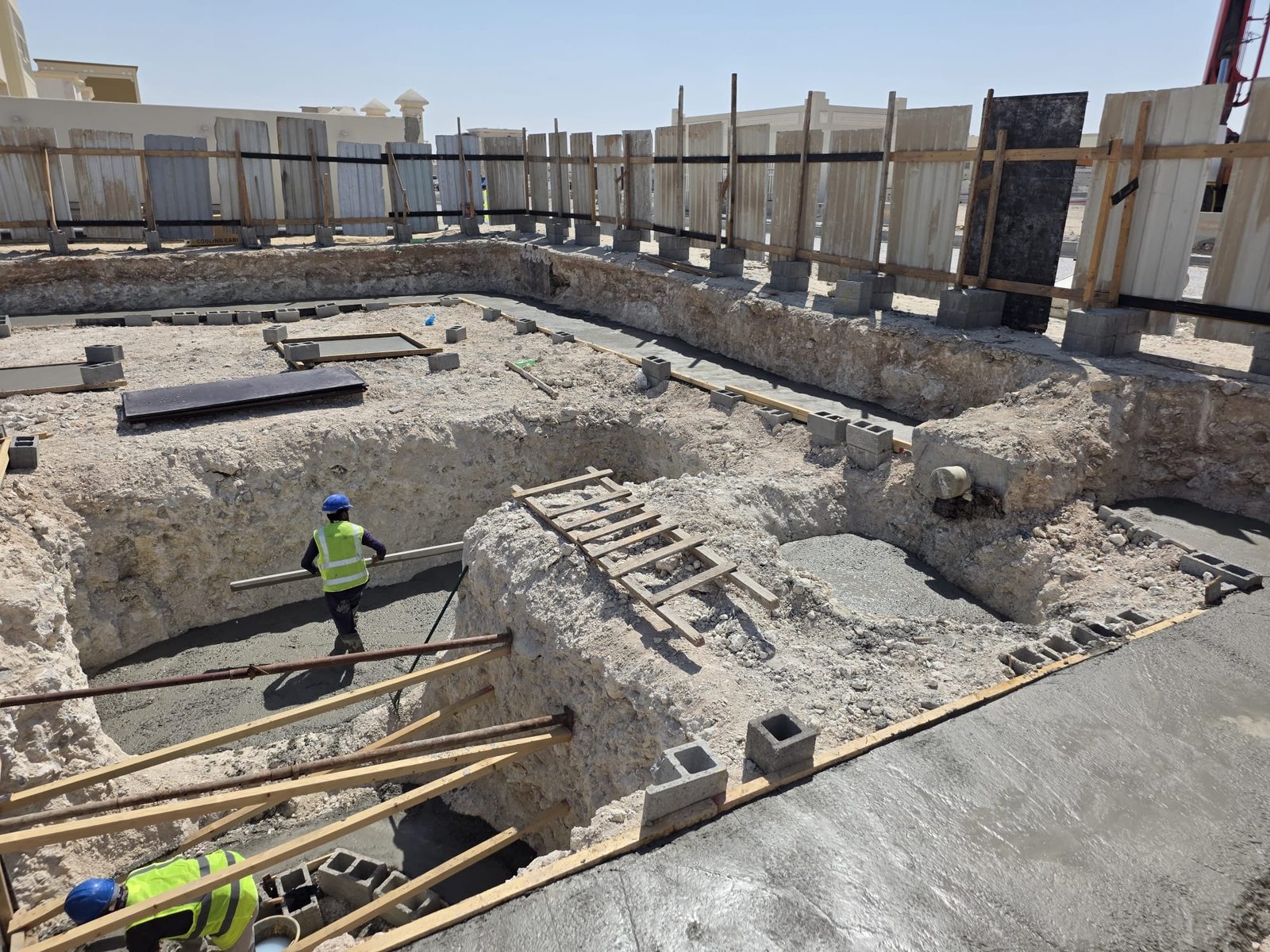

Blinding concrete placement Team placing blinding concrete Blinding thickness verification
05
Stage 04

RCC — Reinforcement & Concrete

  • Reinforcement fixing and formwork for footings, ground beams, columns and slabs per approved rebar shop drawings.
  • Rebar cover, spacing and lap lengths checked against structural drawings and QCS 2024 requirements before pour.

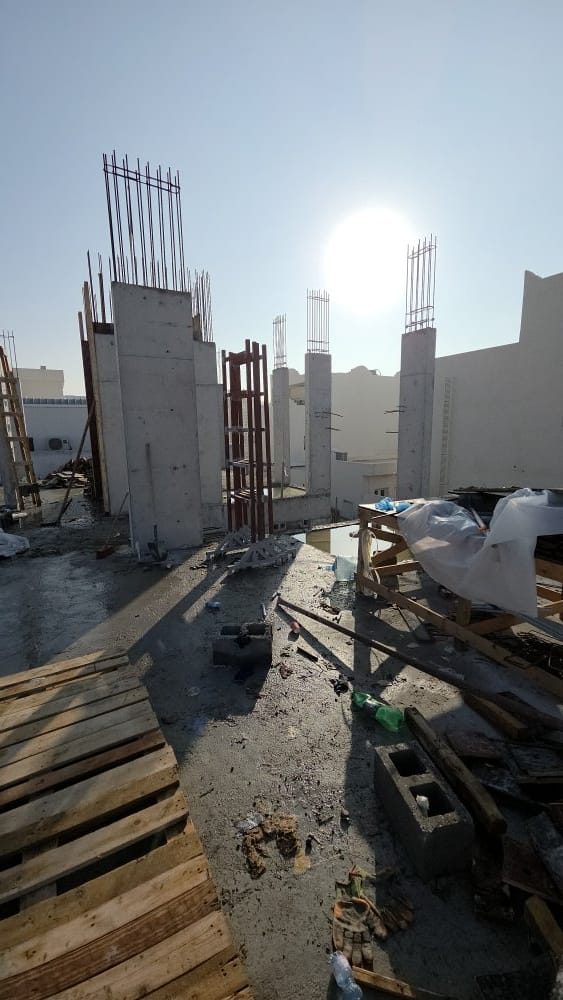

  • Columns cast in stages with formwork alignment, plumb and curing (water spray) verified after each pour.

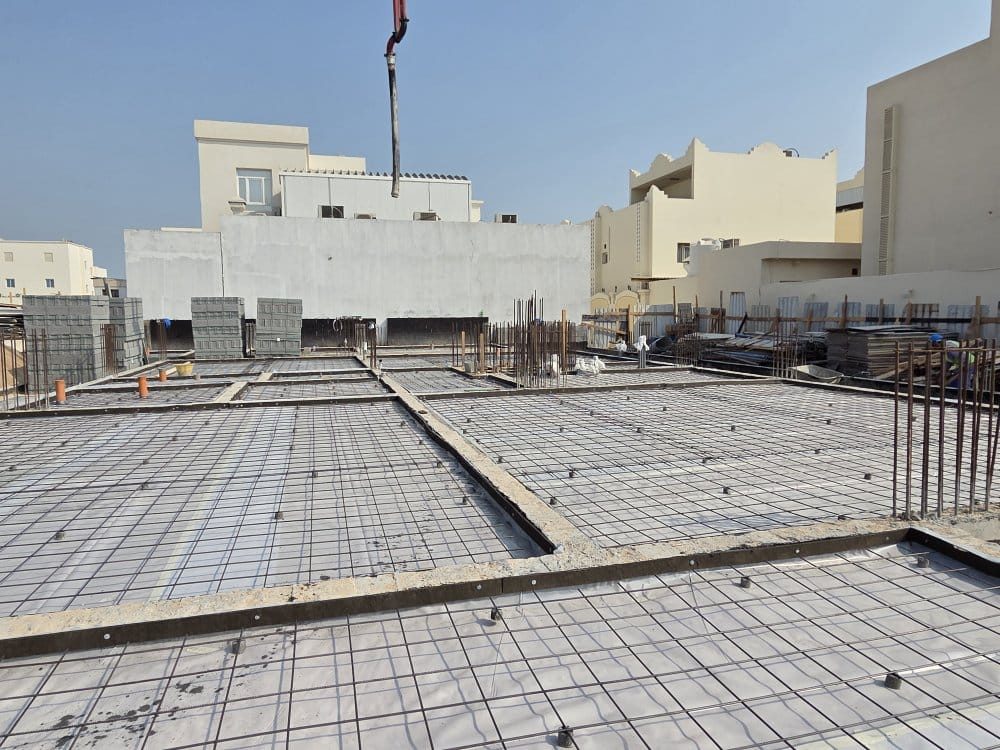

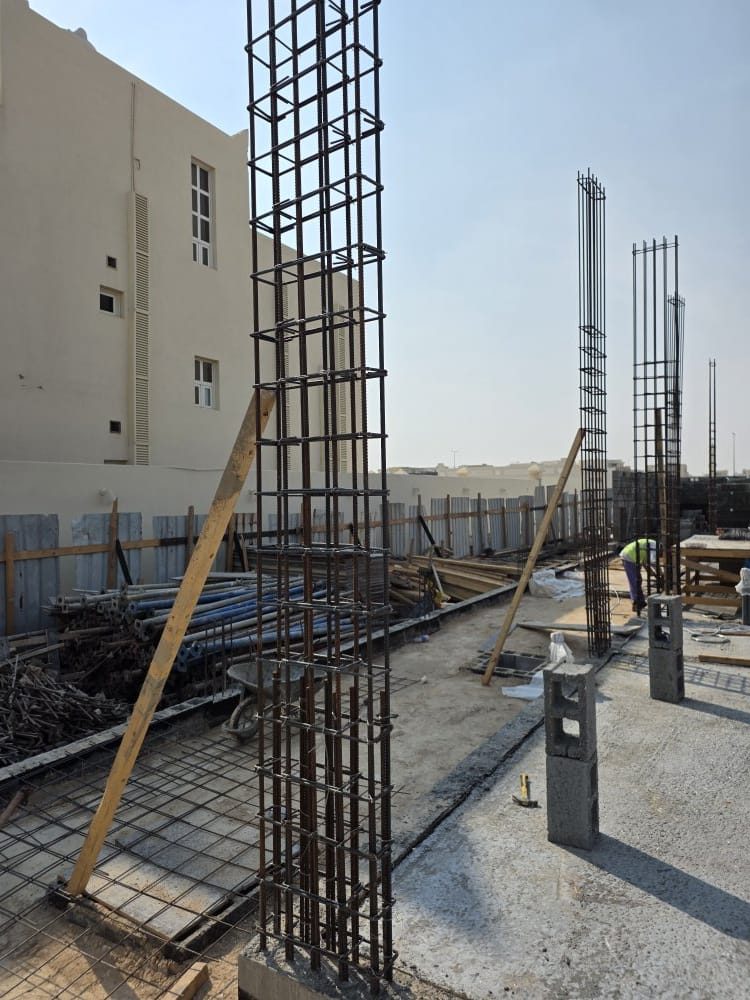

Reinforcement and formwork for slabs Rebar fixing for footings and beams Columns cast and curing
06
Stage 05

Blockwork

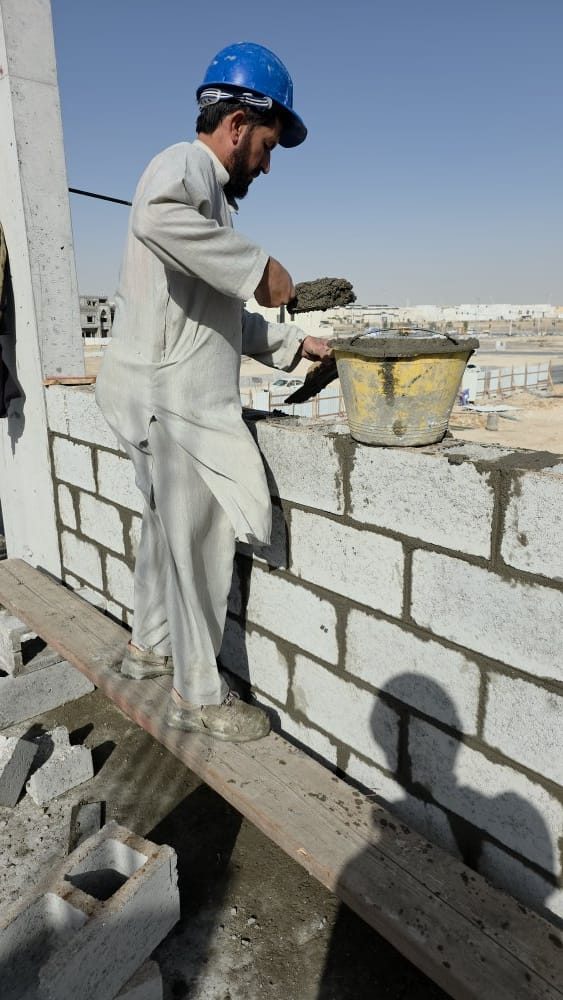

  • Concrete block walls built on cured RCC/DPC level, plumb and true to line off the RCC columns.
  • Mortar joints and block coursing checked for consistency; openings left as per architectural drawings.
  • Wall ties and reinforcement at openings inspected before handover to plastering.

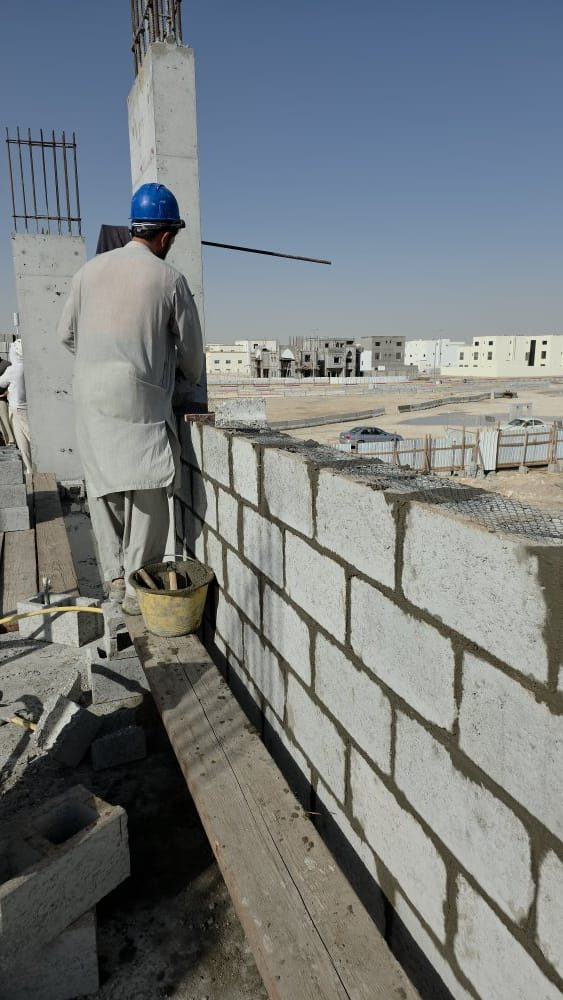

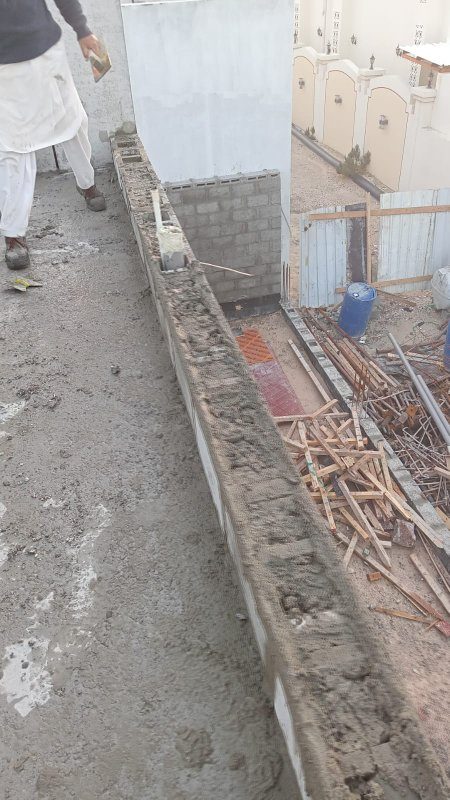

Concrete blockwork walls Mason building blockwork Block coursing and openings
07
Stage 06

Backfilling

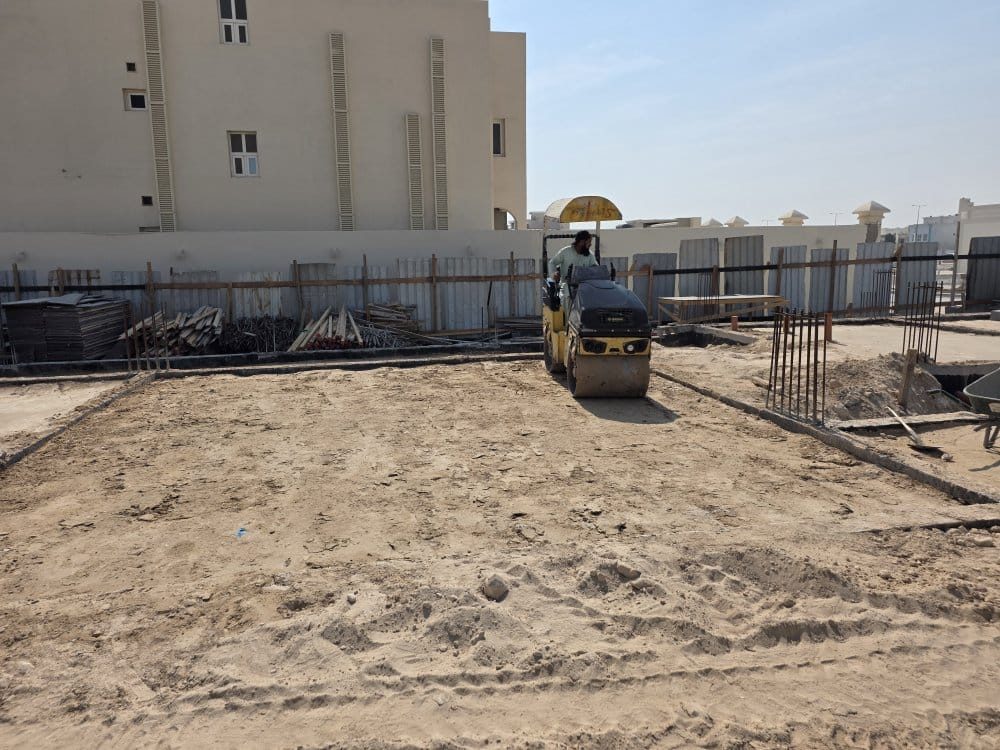

  • Backfill placed in layers around foundations and compacted using a vibratory roller to the required density.

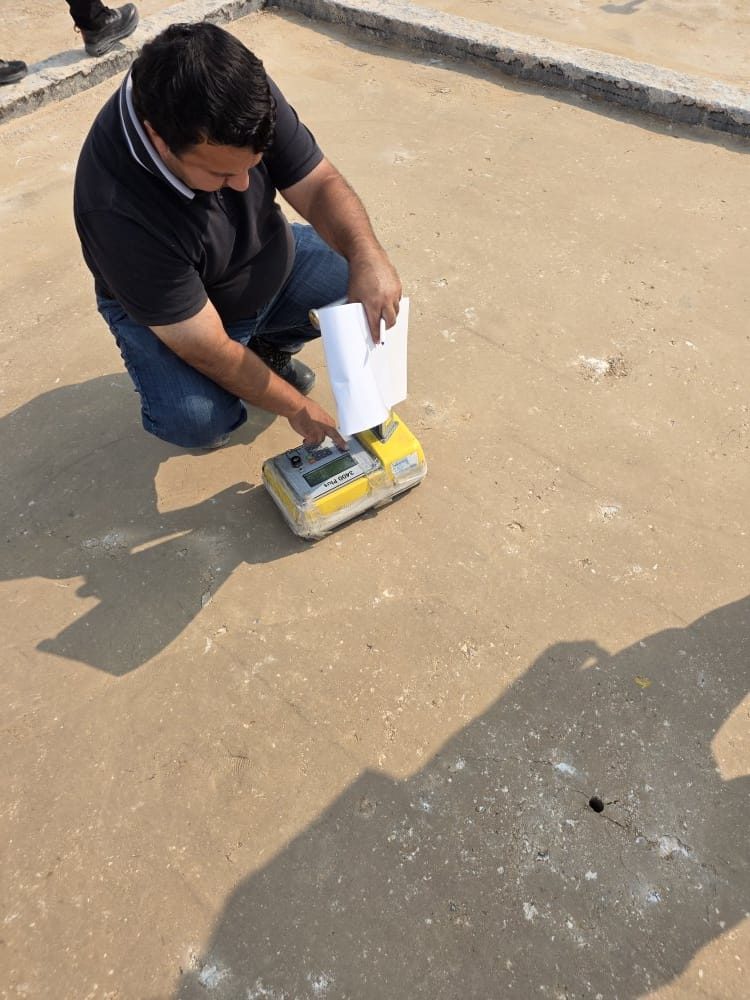

  • Compaction verified with nuclear density gauge (field density) testing against QCS 2024 compaction ratio.
  • Utility trench lines backfilled and levelled ahead of hardscaping and external works.

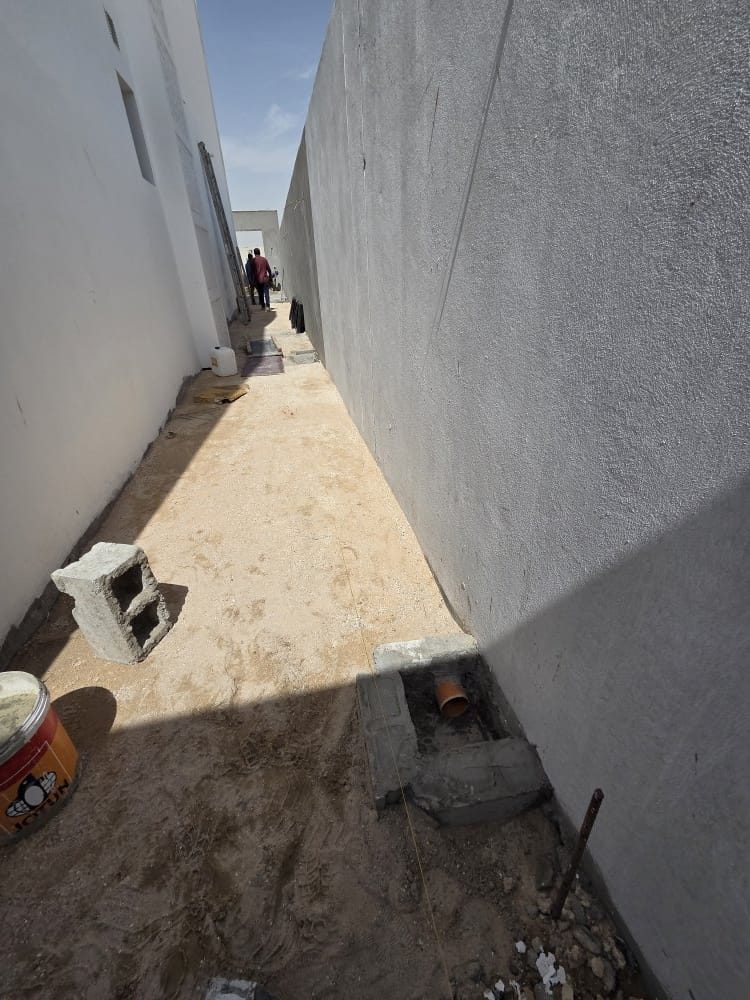

Backfilling around foundations Compaction testing Levelled utility trench lines
08
Stage 07

Plaster

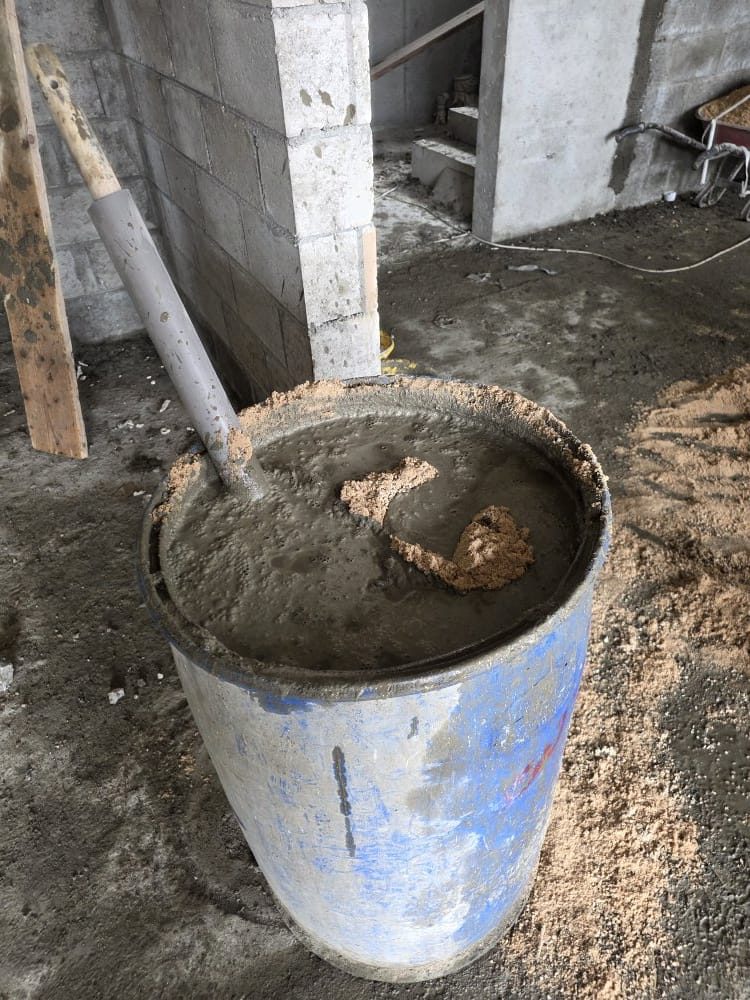

  • Internal and external walls plastered in two coats (base + finishing coat) over the block/RCC substrate.
  • Corners and edges finished using straight edge and plumb level for true, flat surfaces.

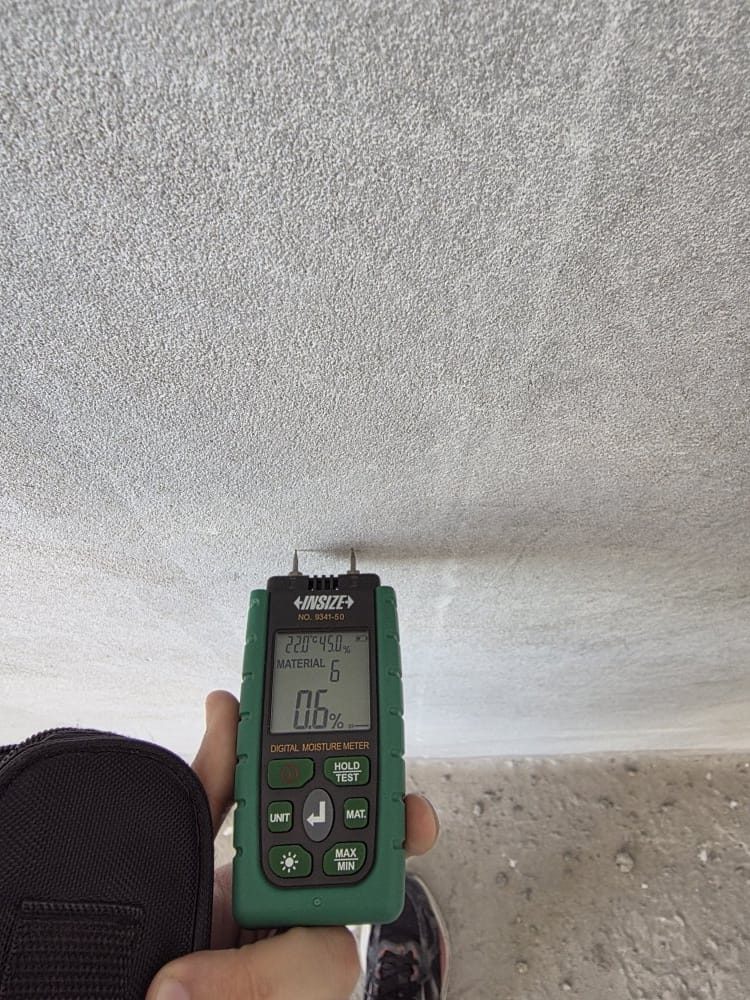

  • Plaster thickness and surface moisture content checked (moisture meter) before painting commences.

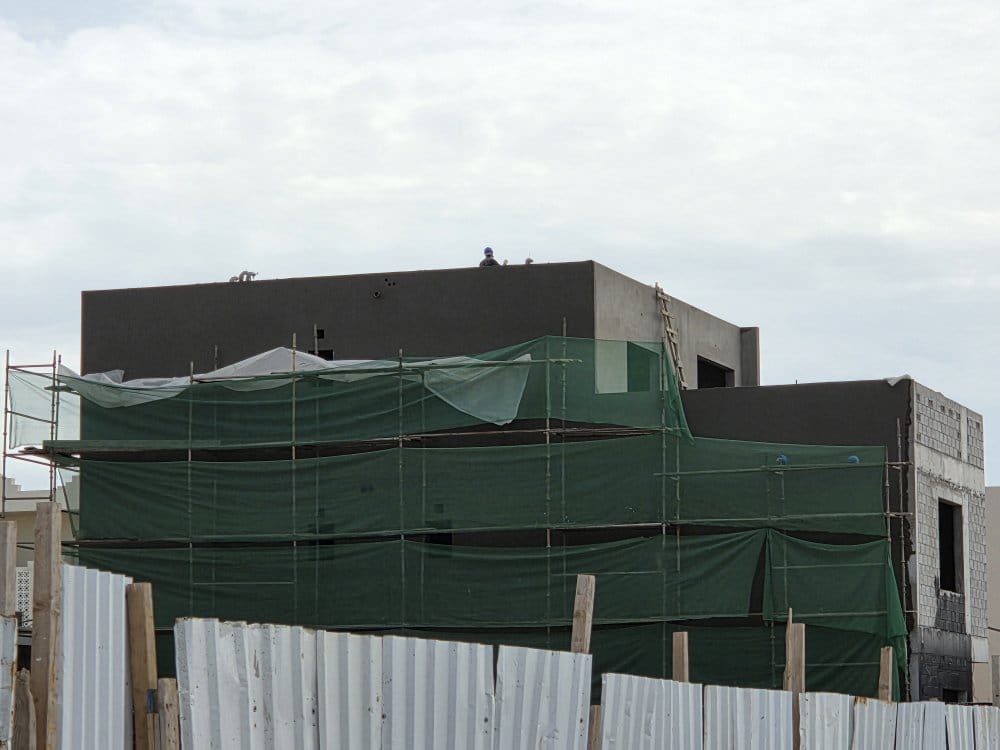

Plastering internal walls Finishing coat application Plastered exterior walls
09
Stage 08

Finishes

  • Flooring (tile/wood), painting, gypsum ceilings and natural stone cladding installed per finishing schedule.

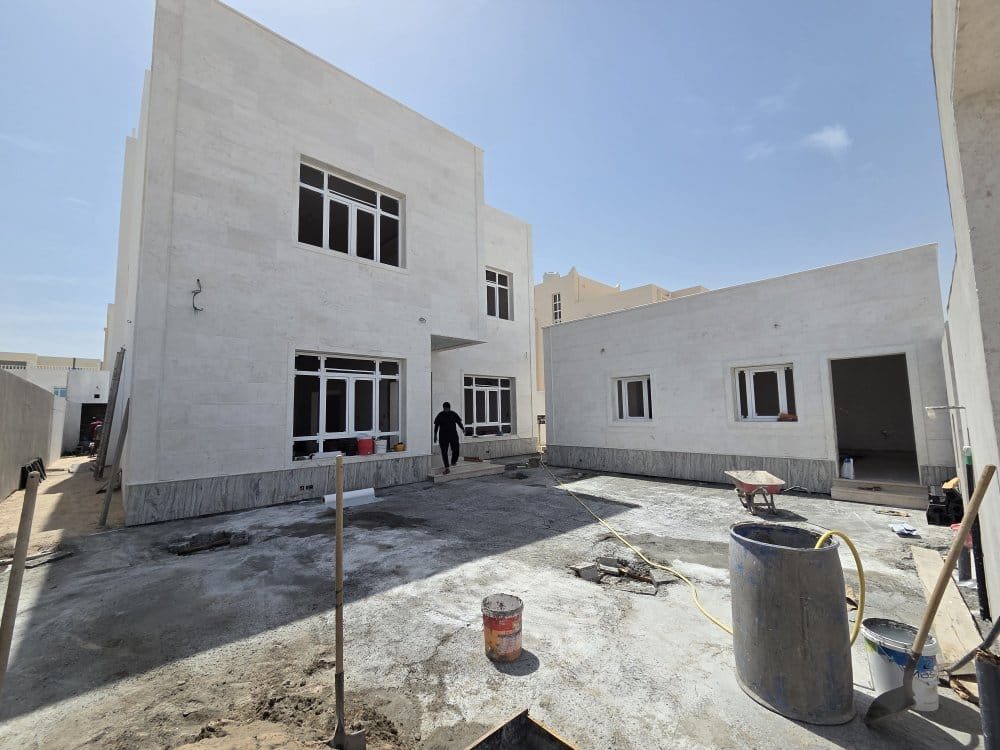

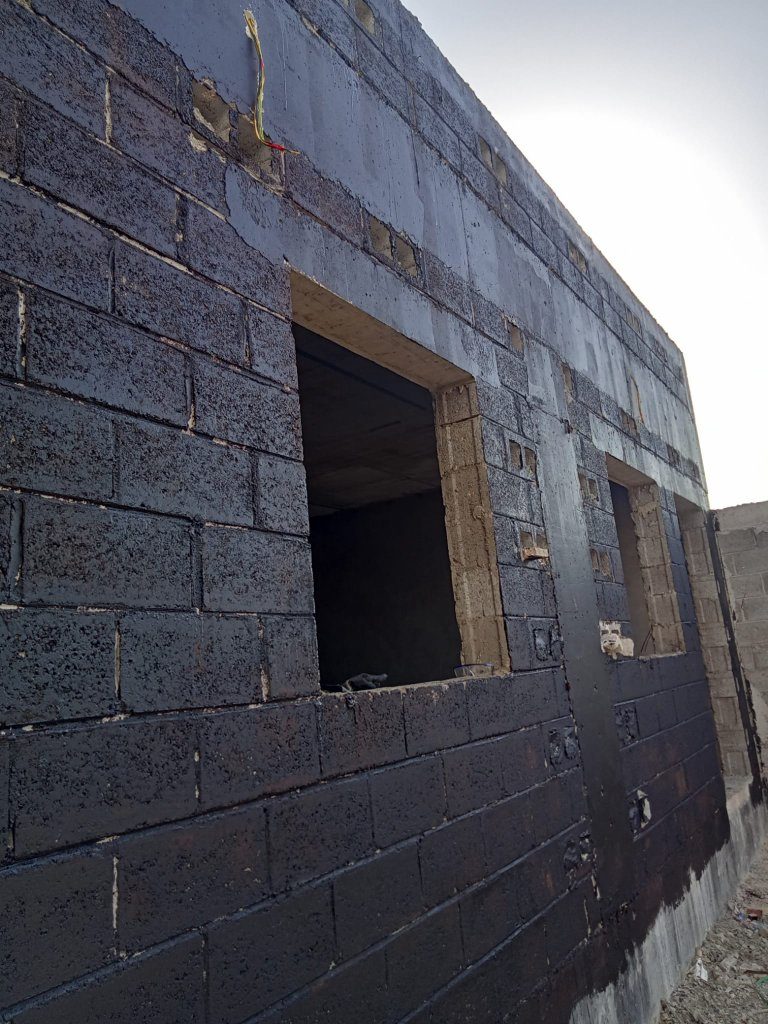

  • Exterior wall base finished with stone cladding over a bonded waterproof backing coat.
  • Wet areas tiled and tested, fixtures installed, and final inspection carried out against the snag list.

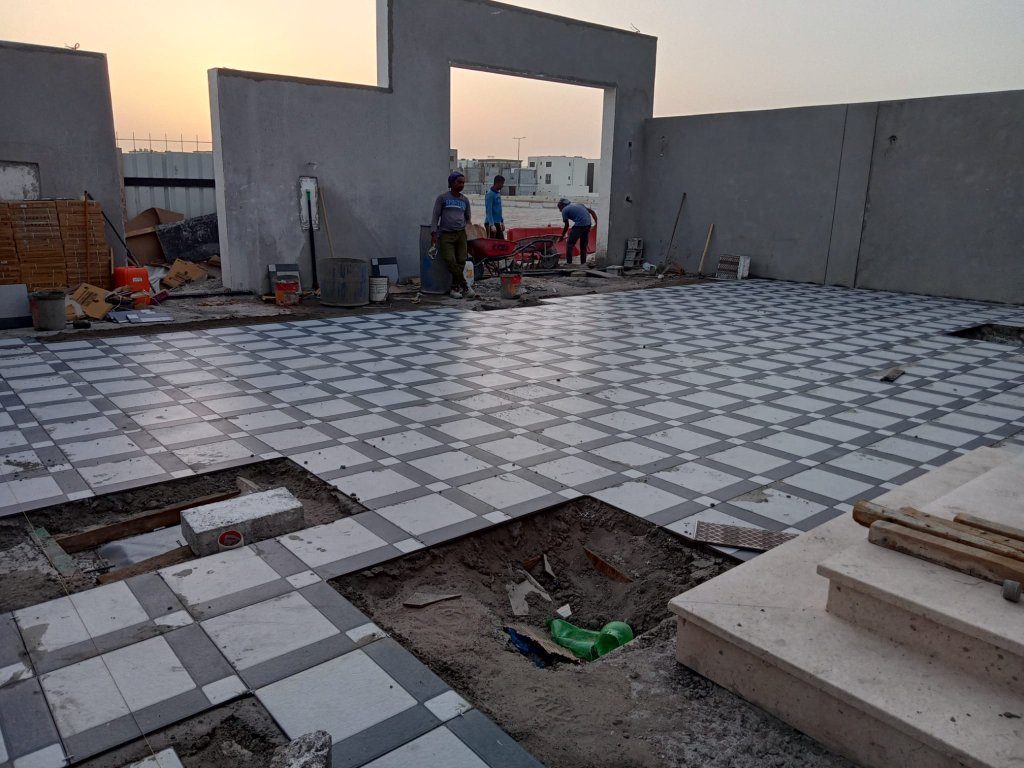

Tile flooring installation Natural stone cladding on exterior Wood flooring finishing

Project Complete & Handover Ready

Villa 3 was fully completed with a natural stone elevation, garage, boundary wall and entrance gate finished, alongside tiled flooring, gypsum ceilings, a fitted kitchen and finished staircase throughout the interior. Final protective wrapping was removed and the site cleaned ahead of handover.

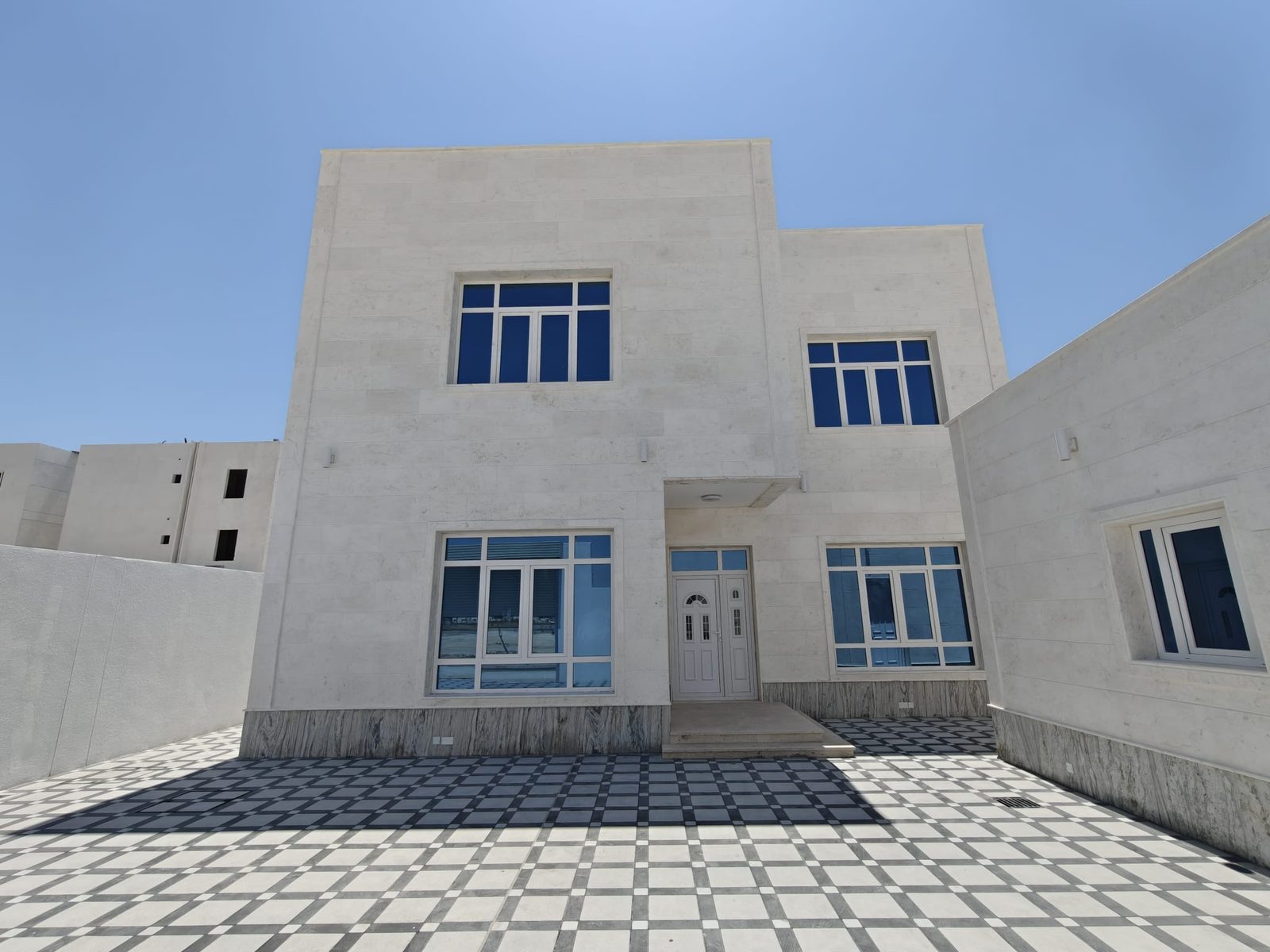

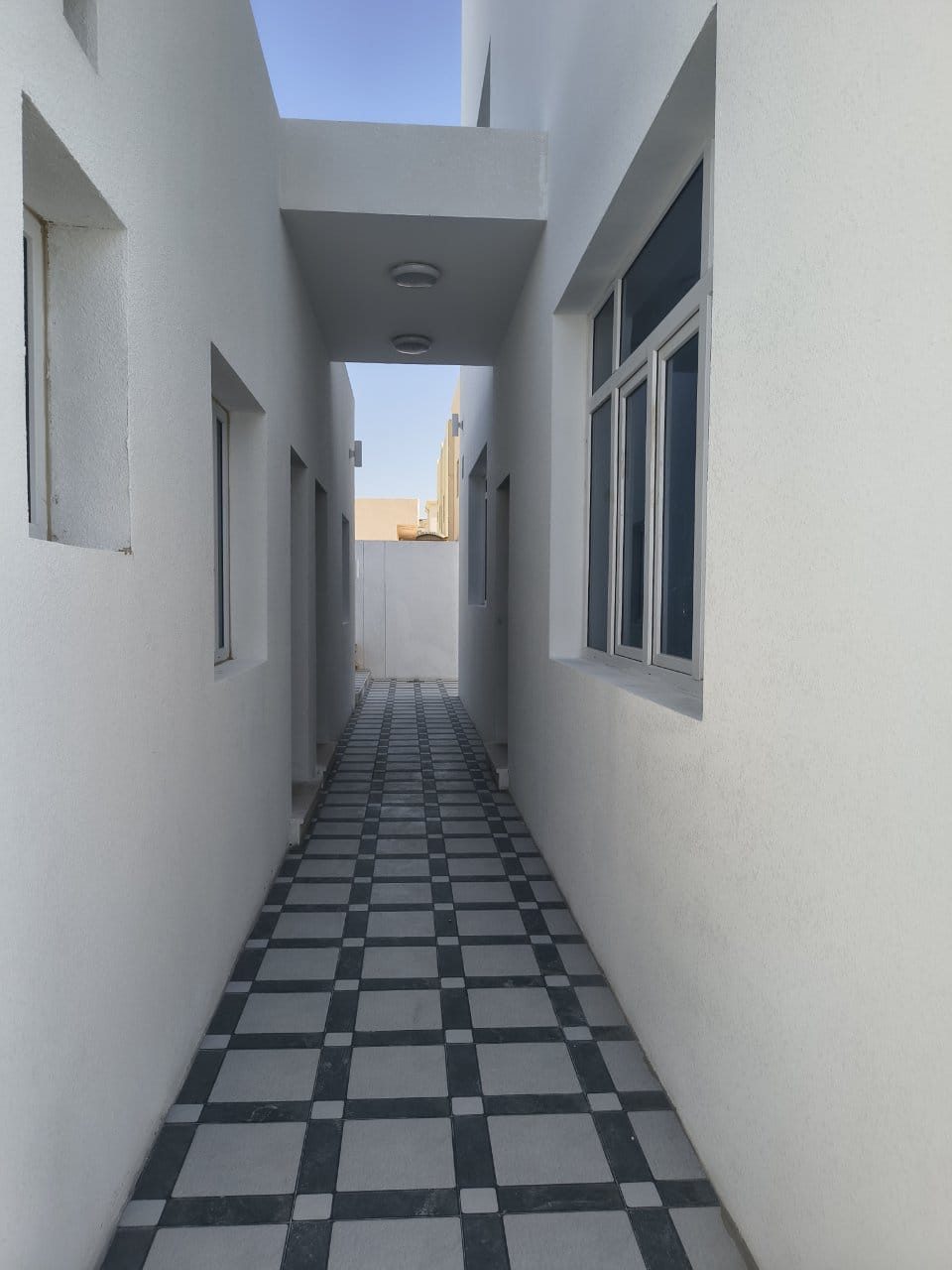

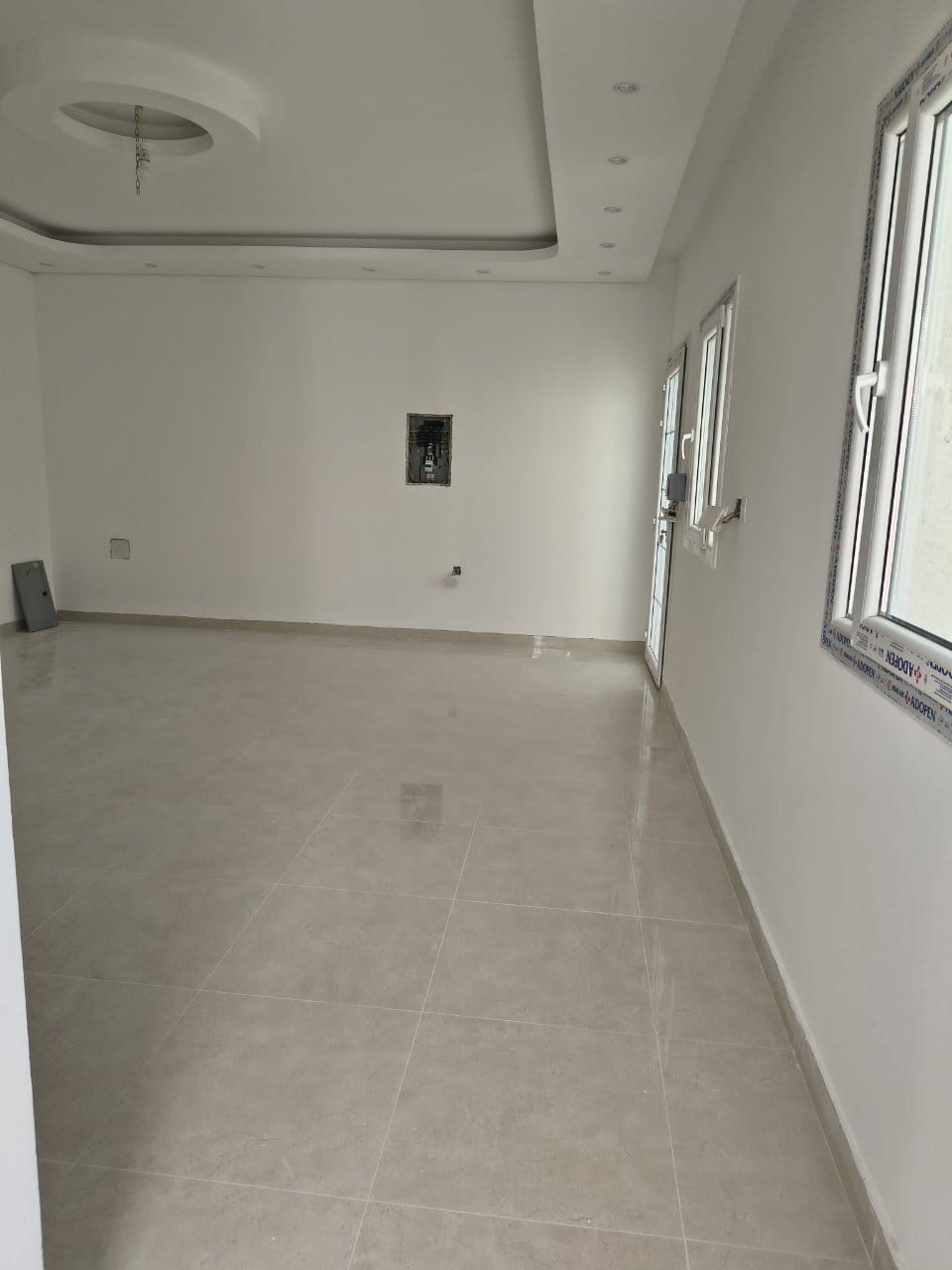

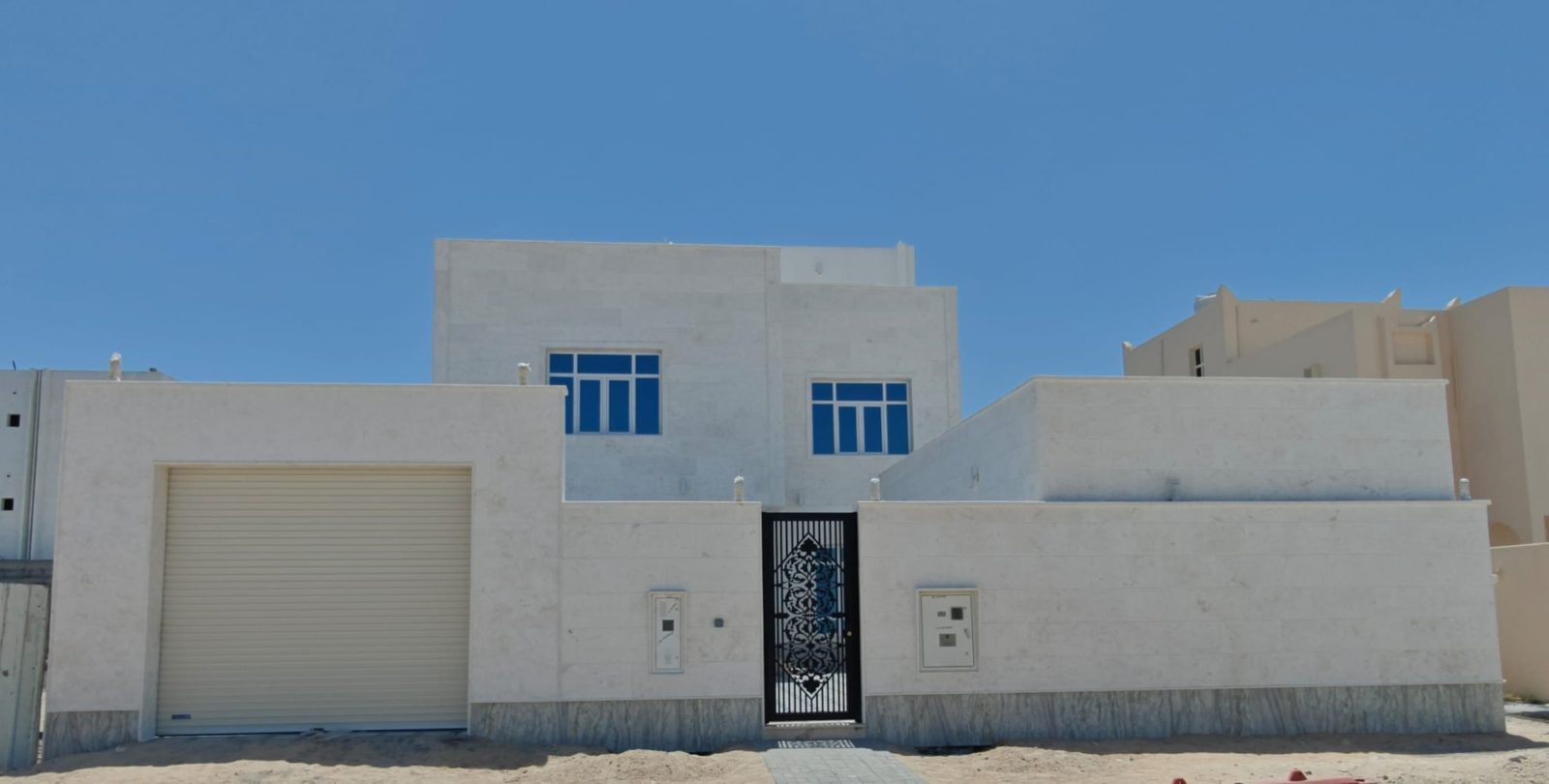

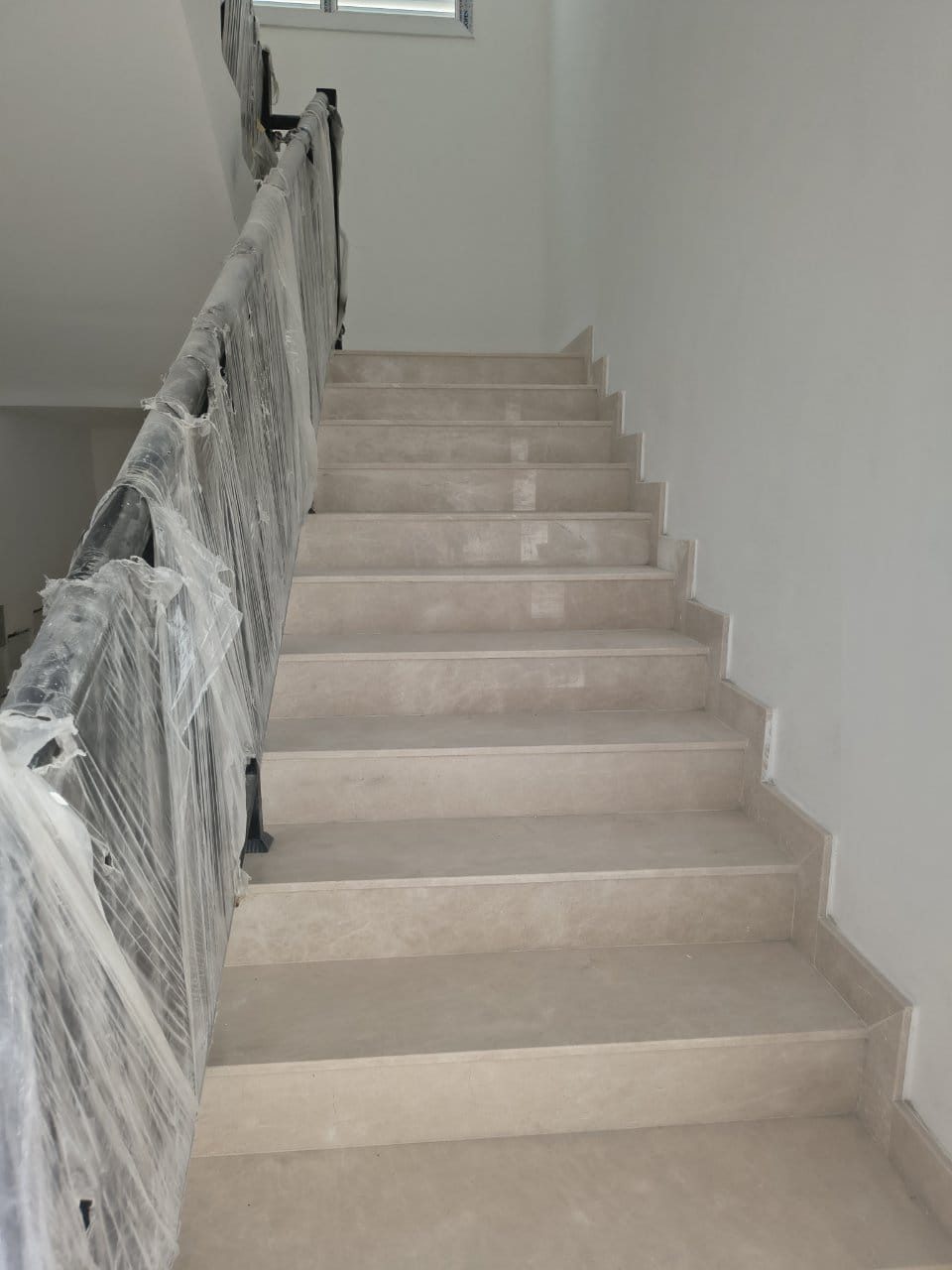

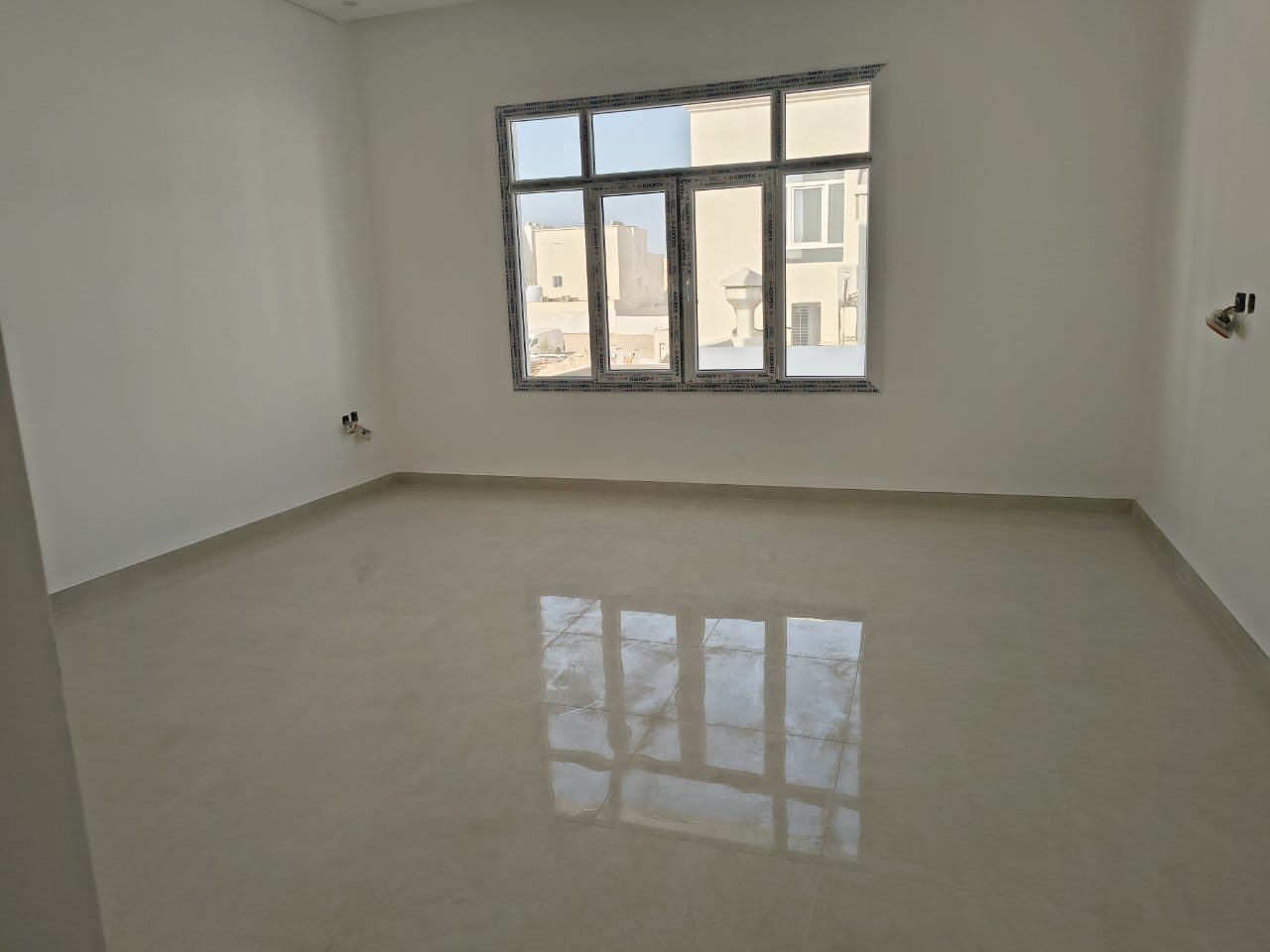

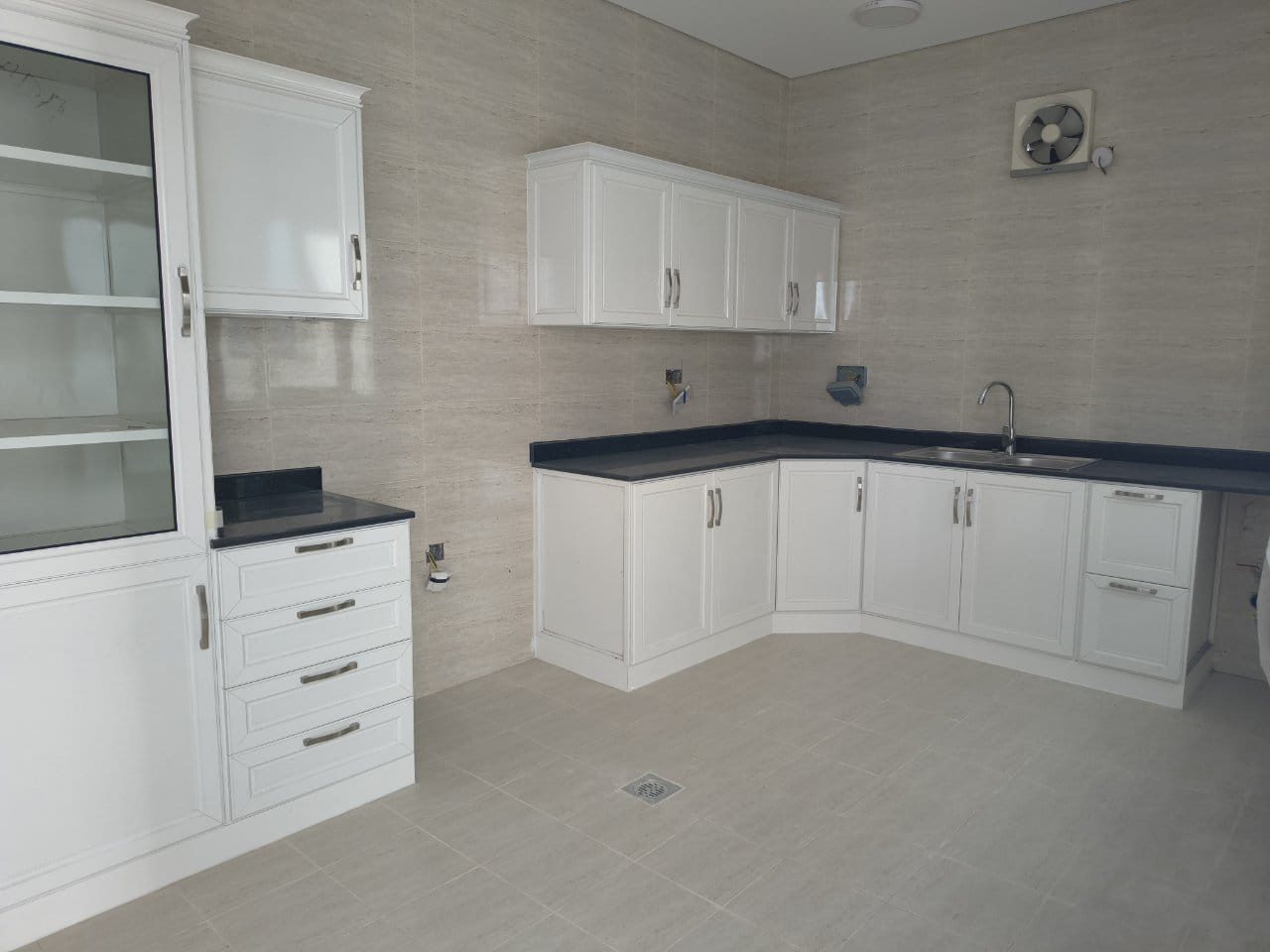

Villa 3 completed exterior elevation Completed fitted kitchen Finished staircase Interior hallway finished Completed courtyard walkway Tiled interior corridor Finished room ready for handover
